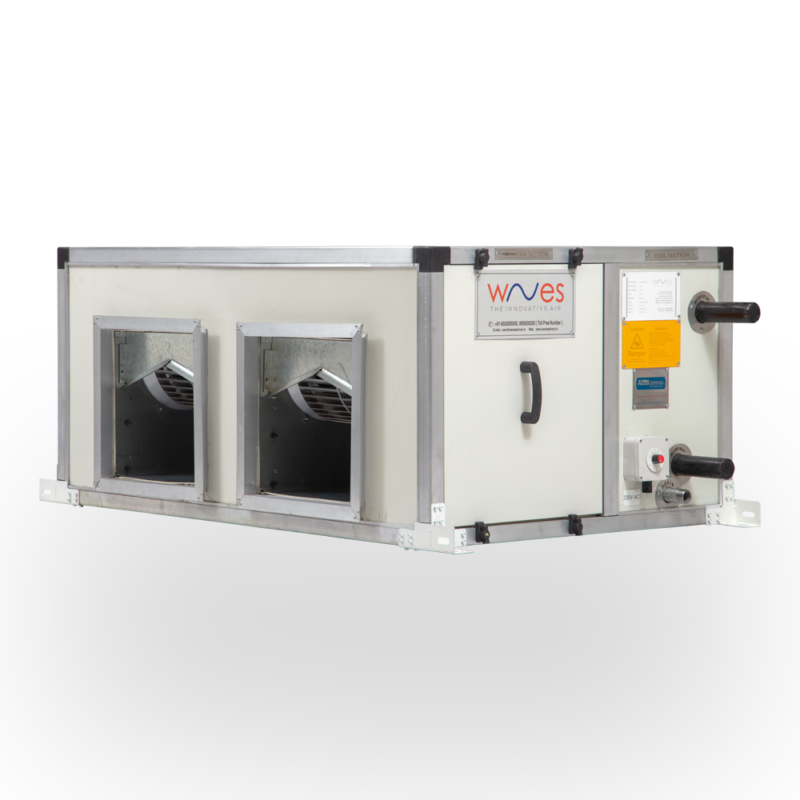

double skin air handling unit (WDH)

double skin air handling unit (WDH)

Description

Industries have several requirements and meeting them in the best way is now possible with the emergence of several professional companies. Waves Aircon Private Limited is one such company that has been doing a commendable job for over a decade now. The company is one of the most competent industrial players and offers high-quality Double Skin Air Handling Unit to several industries. These are very useful in holding large quantities of air and cooling malls, offices, hotels and other large spaces.

FEATURES OF DOUBLE SKIN AIR HANDLING UNIT

PROVIDED BY THE COMPANY ARE EXTREMELY NOTEWORTHY AND APPRECIABLE. THEY CAN BE ENUMERATED AS FOLLOWS:
  • In order to control airflow, a damper is provided
  • Consists of Flashing beacon
  • Mobile units
  • The option of safe change out of filters is present
  • Has Magnahelics on AHUThere are different ventilators for all sorts of functions such as exhaust, heating, cooling coil, air filter racks etc. Through the ductwork (which is connected to AHU), the conditioned air is distributed through all the corners of the building and it is equally returned to AHU as well.

Who doesn’t want to save energy and for the same reason, a cooling recovery exchanger is fitted to AHU. The unit which is placed in the outdoor is known as rooftop unit.

THE UNITS & ITS COMPONENTS ARE CERTIFIED AS UNDER

  1. Double skin casing is tested & approved by BS EN 1886 1998
  2. A centrifugal fan is AMCA certified for sound & air performance.
  3. Heat transfer coils are rated & approved by ARI standard 410-2001

SPECIAL FEATURES

Applications – Cooling, heating, Humidification, Ventilation.

FrameWork – Mainframe of self- supporting hollow extruded Aluminium profile. Thermal break construction as an option.

Frame Panels – Double Skin CFC / HFC free PUF injected 25 / 43 /50 / 75 mm thick panels. Various skin option available in plain GSS, prepainted GSS, pre plasticised GSS, Aluminium, Stainless steel as per duty requirements.

Fan Section – Fan Section contains belts driven DIDW Forward / Backward /Aerofoil Backward curved Centrifugal Blower & direct driven Plug Fans as per requirement.

Fan/Motor Assembly– Fan and Motor assembly mounted on the common base frame of Extruded Aluminium Profile on vibration isolators.

Coil Section – Coil Section designed for CHW / HW / DX high-efficiency heat transfer coils.

Drain Pan – Dual Slopping Aluminium / Stainless steel drain pan mounted on PUF insulated bottom panel.

Filter Section – Flat Filter Section designed for Synthetic pleated pre-filters. Choice of filtration available as per required duty conditions levels.

Scrubber Section – Choice of wet & dry scrubber

Outdoor Installation – Overhead canopy available for outdoor installation.

Optional Sections – Mixing chamber – For Fresh Air & Return Air mixing. Manual /Motorized controls- optional.

Micro ‘V’ / Hepa / Bag / EU- 4 /EU- 7 / EU- 9 / EU- 13 / Special

Fillerations Filter Section.

Heat Recovery Wheel Section.

Spray / Pan Humidifiacation Section.

Other Special Sections as per individual customer requirements.
